99-06 Silverado 1500 Extended Cab Cage

This is a prototype cage kit and is currently offered with a 20% discount at the time of purchase.

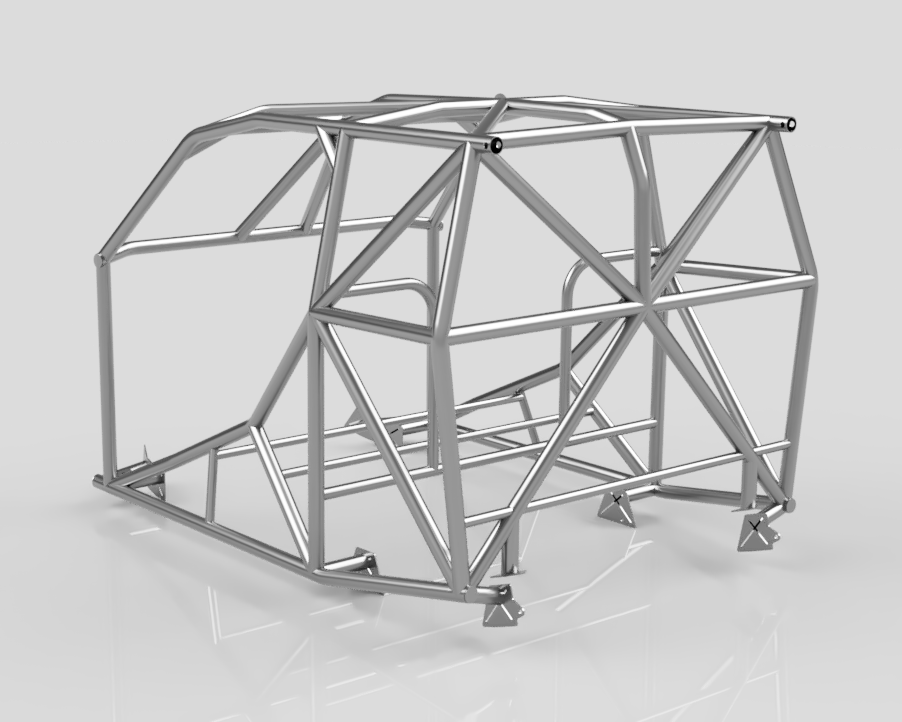

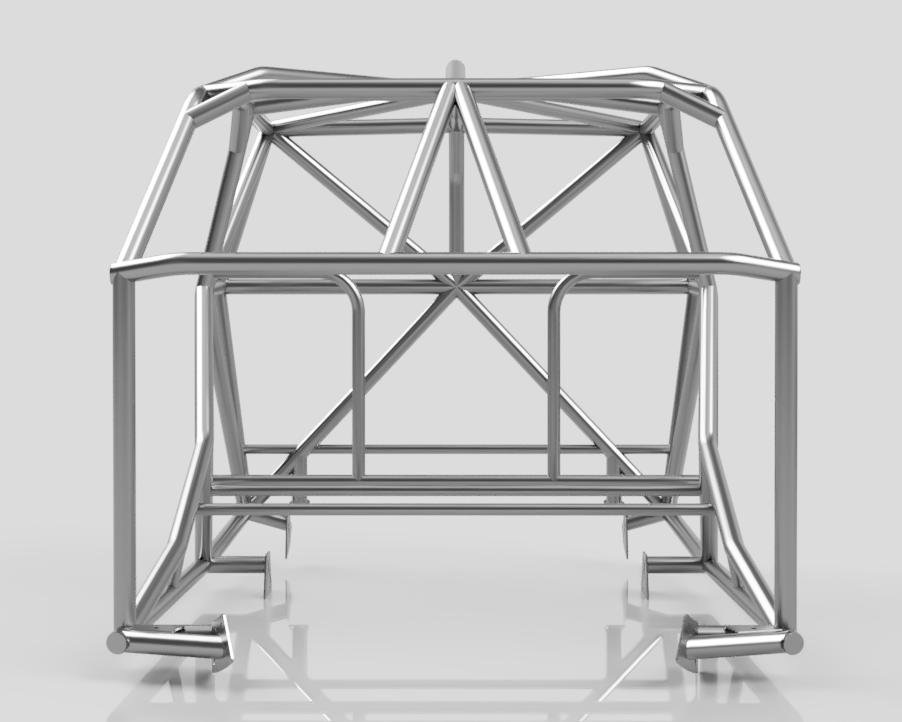

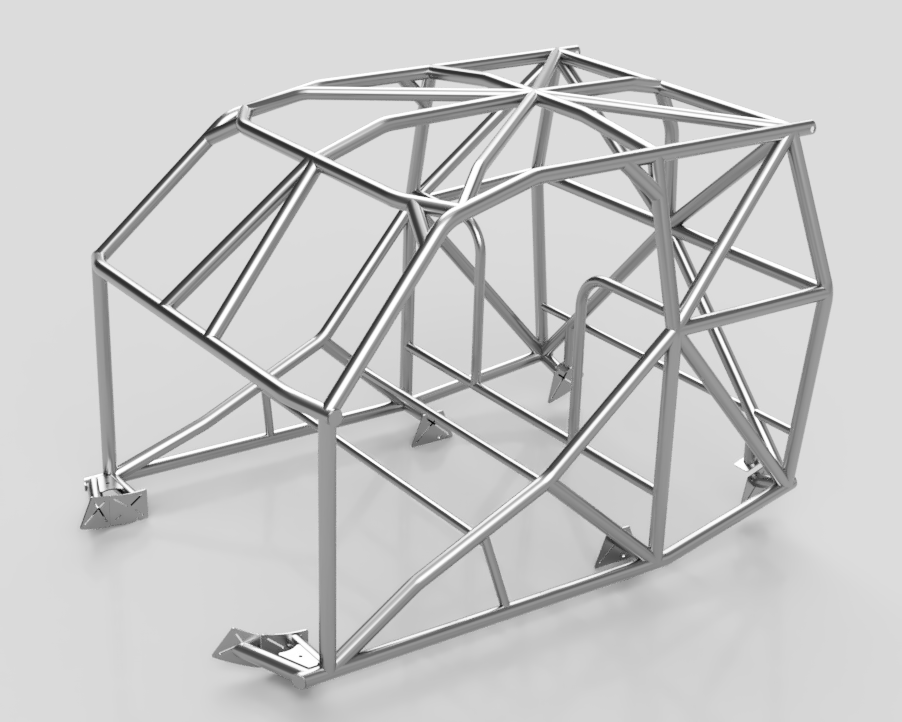

This interior cab cage will fit the 99-06 (and 07 classic body style) Extended Cab Chevy Silverado and GMC Sierra 1500. Designed around a combination of OEM CAD data and 3D scans, this cage is dialed. Built with strength and style in mind. No redundant tubes, no dead structural tubes, no unnecessary weight. Tight to the interior sheet metal for maximum occupant space.

Key Features:

• • Designed and Manufactured in the USA
  • CAD designed. CNC bent. CNC notched.
  • 2"x.120" DOM main tubes/primary structure (most of the cage)
  • 1.75"x.120 DOM diagonal roof lacing
  • 1.5"x.120 DOM/1.25"X.120 DOM (optional) seat mounting tubes.
  • Fits around stock dash and vents. Modification of vents and dash is required.
  • Clears OEM door panels.
  • This cage fits TIGHT to the interior of the cab. Not compatible with stock trim, sheetmetal, or seats. Requires extensive trimming and removal of interior sheetmetal structure.
  • Designed to be a 3 seater (email us for a deal on PRP seats!)
  • QTY (10) cage-to-frame tie ins.
  • Includes 3/16" laser cut overlay plates to reinforce the locations where the cage ties into the frame.
  • Includes integrated front cab mount replacement.
  • Includes solid body mount kit.
  • Deletes rear cab mount.
  • Clears OEM fuel tank.
  • Designed to be dropped down to weld the top side of the tube junctions.
  • This cage was designed in compliance with SCORE racing regulations. Some modifications or additions may be required to fully meet spec. Purchaser/end user must understand the rules of their racing organization and is responsible for any changes that may be needed to pass tech inspection.
  • All tubes are labeled with part numbers.
  • These are sold unwelded as weld-it-yourself kits.

• Note: All vehicles are manufactured with slight differences in tolerance, fitment, assembly, etc. Vehicles that have been driven hard, used off-road, or been in prior accidents may cause the kit to not fit correctly. Tubes in this kit may require trimming and modification to fit your vehicle properly.
• MUST BE INSTALLED BY A COMPETENT AND QUALIFIED FABRICATOR. FOR OFF-ROAD USE ONLY.
